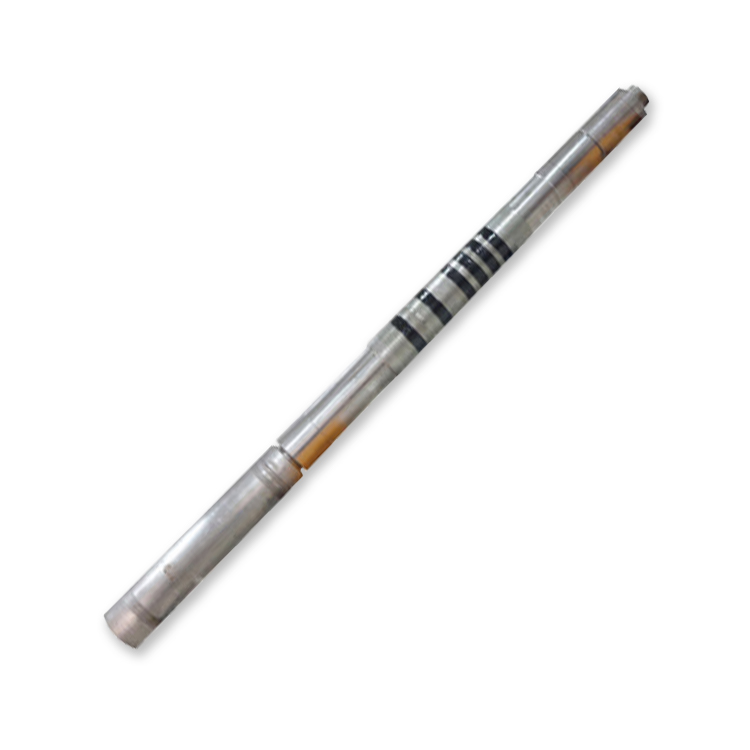

Electromagnetic Wave Propagation Logging Tools

It is low power for long battery life and reduced operating cost.

Electromagnetic Wave Propagation Logging Tools

TRG module provides resistivity measurements when formation evaluation is required in real time.

 Additional resistivity measurements are stored in tool memory and added to the real-time log after drilling to provide a complete, high resolution profile of formation properties.

Our TGR has four launching antennas and one pair of receiving antennas, which can provide 8 compensated multi-depth resistivity curves.

 It is low power for long battery life and reduced operating cost.



Specifications:

Outer Diameter:  6 ¾ inches (17cm)

Max Pressure: 140MPa

Max Operating Temperature:  150℃

Measurement Range:  0.1~2000 Ω.m

Measurement Accuracy:  10 Ω.m ±1%

Vertical Resolution:  6 inches (15cm)

Radial Resolution:  30~75 inches (Max Phase Measurement)  15~30 inches (Minimum Phase Measurement)

Measurement  Interval:  4 Seconds (Minimum)

Max Data Storage Capacity:  128000 Groups

LWD Logging while drilling
